Digital Suspended Solids Analyzer With Infrared Suspended Solids Sensor For Water
Brief Introduction
DUC series suspended solids analyzer is a digital universal controller for measuring suspended solids (sludge concentration). Each DUC series of suspended solids analyzer is pre-installed with a set of embedded software to adapt to different suspended solids (sludge concentration) digital sensors.Users can use the operation panel in front of the DUC solid suspended solids (sludge concentration) meter to calibrate the sensor, set the output parameters, and routine maintenance, which is convenient and quick.
The matched SS sensor is OPSS800, OPSS800 digital infrared suspended solids sensor is based on the 90-degree infrared scattering method of ISO7027 standard, which measures the value of suspended solids of the sample according to the intensity of the scattered light of suspended particles in the water sample. The suspended solids probe uses near-infrared LED as the light source, even if there is color in the sample, it will not affect the measurement result.

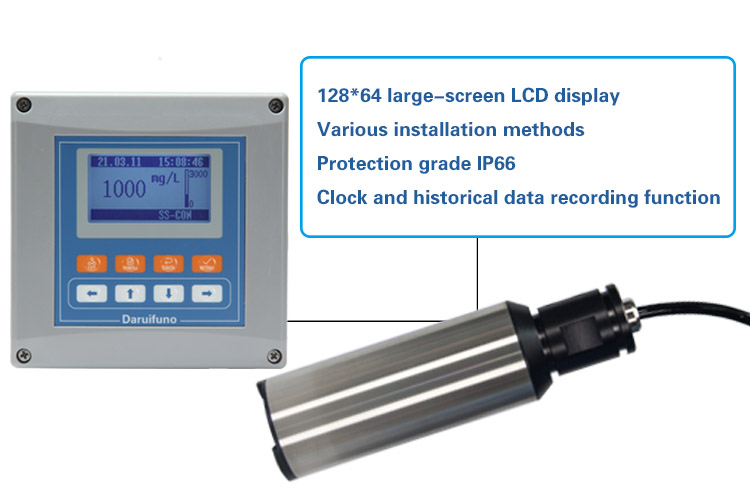

Advantages Of The Suspended Solids Analyzer
128*64 large-screen LCD display, Chinese and English language display
The enclosure protection grade of the SS meter is IP66
Protected measurement window design to prevent accidental damage to the sensor.
Support up to 10 points of calibration, can accurately measure the turbidity value.
The sensor stores the calibration parameters internally, supports offline calibration and plug-and-play.
The main material of the SS sensor is stainless steel and POM, which is strong and sturdy.
Applications Of The Suspended Solids Analyzer
Industrial wastewater treatment, municipal sewage treatment, river and lake monitoring, and other fields.
Technical Parameters
| Product Name | Suspended Solids analyzer |
| Product Model | DUC2-SS-H |
| Software Version | DRFN SS (sludge concentration) Analysis software V1.0 |
| Turbidity Display Range | 0.01mg/L~100g/L |
| Turbidity Resolution | 0.01mg/L |
| Relay Control | 2 settable SPST relays max. load 3A/250VAC |
| Analog Current Output | 2 settable 0/4~20mA active current loop output max. load 1000Ω |
| Communication Method | Two-wire RS485 interface; MODBUS RTU; support JSON text data format |
| Display Screen | 128*64 LCD, adjustable backlight mode |
| Time History/Data Record | Year/month/day/hour/min/second, record 14000 historical data |
| Protection Level | IP66 |
| Operating Environment | 0～60℃, relative humidity less than 95% (no condensation) |
| Storage Environment | -20～70℃, relative humidity less than 55% (no condensation) |
| Shell Material | Enhanced ABS |
| Size | 144*144*120mm (hole size 138*138 mm) |
| Mounting Method | Wall mounting, pipe clamping, panel mounting |
| Power Supply | 100-240V AC or 18-36V DC |
| Weight | 800g |
| Power Consumption | 12W |
| Product Name | Infrared suspended solids sensor |
| Product Modle | OPSS800 |
| Measure Range | 0~3000mg/L |
| Resolution | 1mg/L |
| Accuracy | Less than 5% of the measured value |
| Measuring Principle | Infrared scattering principle independent of color |
| Calibration Method | Activated sludge calibration, diatomite calibration, linear calibration |
| Operating Temperature | 0.0~45.0℃ |
| Working Pressure | ≤0.4Mpa |
| Dimensions | Diameter: 52mm, length: 195mm |
| Material | stainless steel+POM |
| Weight | Approximately 700g (without cable) |
| Power Supply | 12VDC, power consumption about 50mA |
| Light Source | 850nm infrared light source |
Product Tags:
|
|

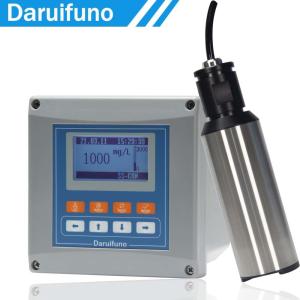

Water Digital Suspended Solid Analyzer With Sensor Images
|
